GIWAXS reverse problem¶
Zihan Zhang (zihan.zhang-1@colorado.edu)

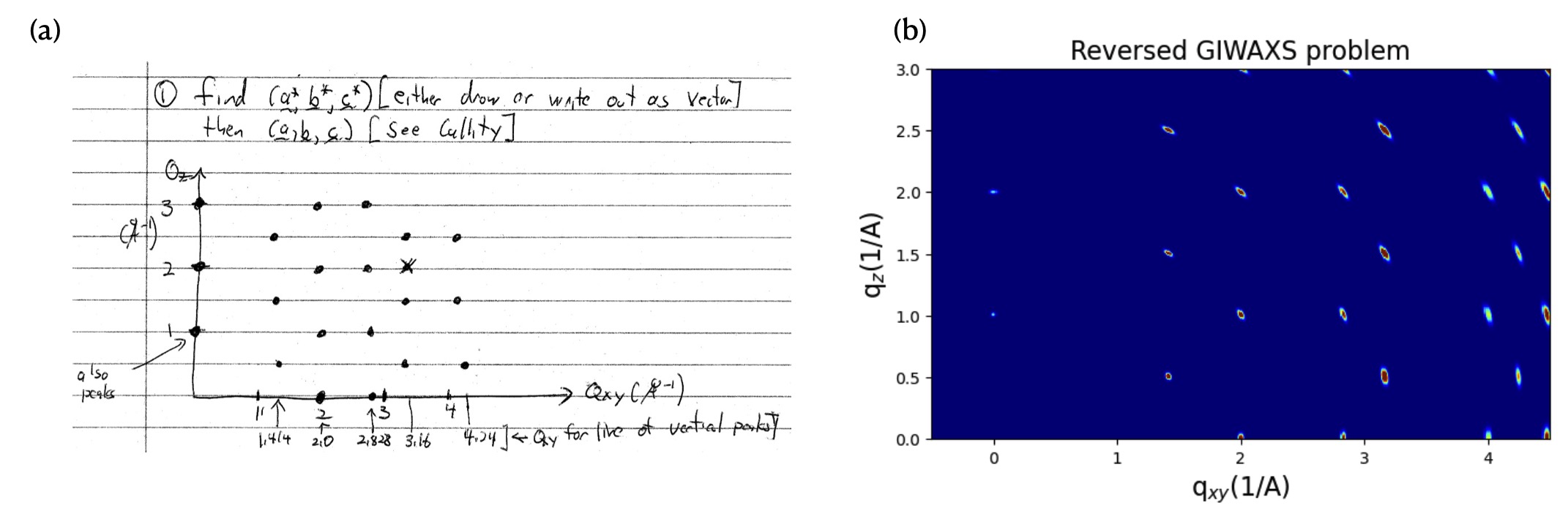

Reversed GIWAXS problem: derive the lattice parameters from the given GIWAXS pattern.
A brute-force search program
Blue print of the program¶
- GIWAXS reverse problem
- Input
- Given peak positions (In the first quadrant only)
- A guess of \(\vec{G}\)
- DOF analysis
- Original 9 degrees of freedom
- [\(a^*_x\),\(a^*_y\),\(a^*_z\)] [\(b^*_x\),\(b^*_y\),\(b^*_z\)] [\(c^*_x\),\(c^*_y\),\(c^*_z\)]
- Force \(\vec{a}^*\) to be in [\(a_x^*\),0,\(a_z^*\)] direction (kills 1 degrees of freedom (DOF=8))
- Find the peak that is nearest to [0,0,0] (gives \(a_x^*\) and \(a_z^*\), (DOF=6))
- Remove peaks \(\vec{a}^*\), \(2\vec{a}^*\), \(3\vec{a}^*\), ...
- Find the next nearest peak (gives [\(b_{xy}^*\),\(b_z^*\)] and kills 2 DOF (DOF=4))
- Algorithm
- Monte Carlo (good for high dimensions), Markov chain (Brute-force search. This is a ill-conditioned problem with a lot of local minimums.)
- Cost function: add up the distance of each given peak to the nearest simulated peak. add up the distance of each simulated peak to the nearest given peak. (make sure every peak find their friend)
- Optimization
- use gradient decent after MT to boost the convergence
- convert the output lattice parameter to a high symmetry format
- Input
Import libraries
import numpy as np
import scipy.ndimage as ndimage
import diffraction as diff
import matplotlib.pyplot as plt
import matplotlib.cm as cm
import time as time
from matplotlib.widgets import Button
import scipy.io
from matplotlib.widgets import RangeSlider
import matplotlib.patheffects as path_effects
Input
qxy_exp=[0,4]
qz_exp=[0,4]
Bragg_peaks_exp=[
[0,1],
[0,2],
[0,3],
[2,0],
[2,1],
[2,2],
[2,3],
[2.818,0],
[2.818,1],
[2.818,2],
[2.818,3],
[1.414,0.5],
[1.414,1.5],
[1.414,2.5],
[3.16,0.5],
[3.16,1.5],
[3.16,2.5],
[4.24,0.5],
[4.24,1.5],
[4.24,2.5],
[4,0],
[4,1],
[4,2],
[4,3]
]
hkl=5
def make_cif(Bragg_peaks):
# b1=[np.random.uniform(-ub, ub),0,np.random.uniform(-ub, ub)]
b2x=np.random.uniform(-1.5, 1.5)
b3x=np.random.uniform(-5, 5)
b3y=np.random.uniform(-5, 5)
b3z=np.random.uniform(-5, 5)
b1=[0,0,1]
b2=[b2x,np.sqrt(2.25-b2x*b2x),0.5]
b3=[b3x,b3y,b3z]
return b1,b2,b3
def find_c(array):
x_values_with_leading_zero = [pair[1] for pair in array if pair[0] == 0]
if not x_values_with_leading_zero:
return None
return min(x_values_with_leading_zero)
def closest_distance(array, point):
# Convert the input to numpy arrays if they aren't already
array = np.array(array)
point = np.array(point)
# Compute squared distances
squared_distances = np.sum((array - point)**2, axis=1)
# Find the minimum squared distance and take its square root to get the actual distance
min_distance = np.sqrt(np.min(squared_distances))
return min_distance
def Bragg_peaks(b1,b2,b3,hkl_dimension):
# grid for Miller index
i=np.linspace(-hkl_dimension,hkl_dimension,2*hkl_dimension+1)
H,K,L=np.meshgrid(i,i,i)
# The position of Bragg peaks in reciprocal space
G1=H*b1[0]+K*b2[0]+L*b3[0]
G2=H*b1[1]+K*b2[1]+L*b3[1]
G3=H*b1[2]+K*b2[2]+L*b3[2]
q2=G1*G1+G2*G2+G3*G3
F=1
Bpeaks=np.concatenate((G1,G2,G3), axis=0)
# return Bpeaks,pow(G1*G1+G2*G2,0.5),pow(G3*G3,0.5)
return pow(G1*G1+G2*G2,0.5),pow(G3*G3,0.5)
def FT(a1,a2,a3):
# Lattice parameters M matrix in cartesian coordinate(angstrom)
M=[a1,a2,a3]
M=np.asarray(M)
# New lattice parameter
aa1=M[0,:]
aa2=M[1,:]
aa3=M[2,:]
# reciprocal lattice
volume=np.matmul(aa3,np.cross(aa1,aa2))
b1=2*np.pi*np.cross(aa2,aa3)/volume
b2=2*np.pi*np.cross(aa3,aa1)/volume
b3=2*np.pi*np.cross(aa1,aa2)/volume
print(b1,b2,b3)
Main
total_distance0=99999999
for i in range(500000):
b1,b2,b3=make_cif(Bragg_peaks_exp)
qxy,qz=Bragg_peaks(b1,b2,b3,hkl)
qxy=qxy.ravel()
qz=qz.ravel()
combined = np.column_stack((qxy, qz))
j=0
total_distance=0
for ii in Bragg_peaks_exp:
total_distance=total_distance+closest_distance(combined,Bragg_peaks_exp[j])
j=j+1
j1=0
for ii in combined:
if combined[j1,0]<qxy_exp[1]:
if combined[j1,1]<qz_exp[1]:
total_distance=total_distance+closest_distance(Bragg_peaks_exp,combined[j1])
j1=j1+1
if total_distance<total_distance0:
total_distance0=total_distance
FT(b1,b2,b3)
Performance:
The result from a test on PC. (~ 25 miniutes cpu time)
[ 1.09233506 -2.95321592 6.28318531]
[-2.18850426 5.89804628 0. ]
[-1.84097256 -4.0263532 0. ]
## rotate this lattice and re-define lattice parameters to make it symmetric, you'll get
a = [-pi, pi, 0]
b = [-pi,-pi, 0]
c = [pi, 0, 2pi]
